[Description]

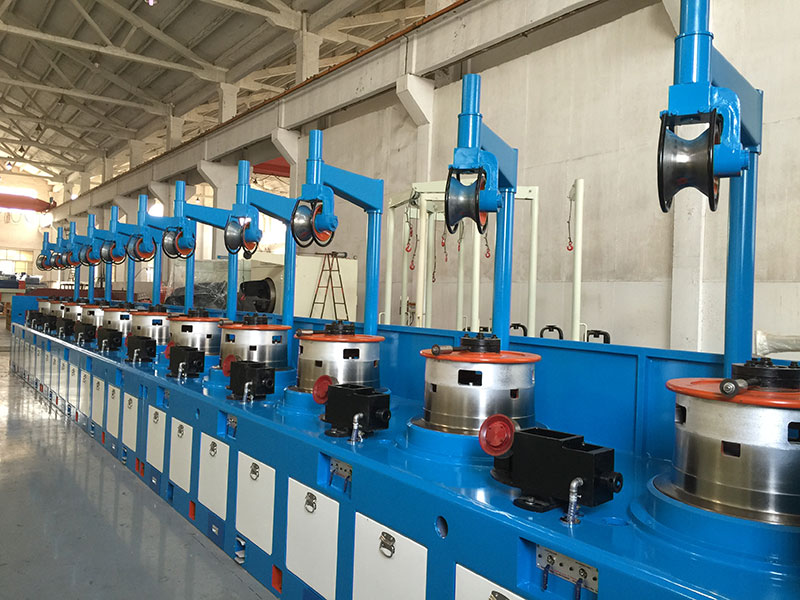

We are one of the earliest manufacturers of this wire drawing machine in China. It is mainly composed of gearbox, guider wheel of die box, stripper and electrical control system. In order to reduce the residual heat on the surface of capstan generated by the drawn wires, inner wall is equipped with cooling spray device. All dies are immersed in water to reduce the working temperature of dies. The pulley wire drawing machine has the following invention and utility patents: ‘Upper guide roller device’, ‘Damper stripper device’, ‘Double side low speed spindle’, ‘Lifting pulley structure’, ‘Dry drawing box part’, ‘Gearbox part’, etc.



[Advantages of equipment]

1.Easy operation, handling and maintenance.
2.During drawing, it will not damage the wire surface, and the capstan is not easy damaged; meanwhile, it benefits the quality.
3.The middle capstan can storage the wire, which means if one capstan meets a fault, the others can keep working.
4.It is a long time that wire stays on the capstan to get a good cooling effect.



[Equipment application field]
Widely used for producing high and low carbon steel wire, stainless steel wire, galvanizing wire, wire mesh, nails, etc.



[Technical parameters]

Items	Unit	LW1-9/650(700)	LW1-9/560(600)	LW1-9/450(400)
Capstan diameter	mm	650(700)	560(600)	450(400)
Inlet wire diameter	mm	Φ8.0-6.5	Φ7.0-5.5	Φ3.0-2.5
Min outlet wire diameter	mm	Φ2.0	Φ1.6	Φ0.7
Inlet wire tensile strength	Mpa	400-1200	400-1200	700-1200
Drawing speed	m/min	≦240	≦360	≦720
Drawing dies	time	1-9	1-9	1-9
Total reduction rate	%	≦90.53	≦91.52	≦92.16
Average reduction rate	%	23.04	24.0	24
Motor power	Kw	37-18.5	30-18.5	15-7.5
